ตู้ควบคุม Fire Alarm Control Panels

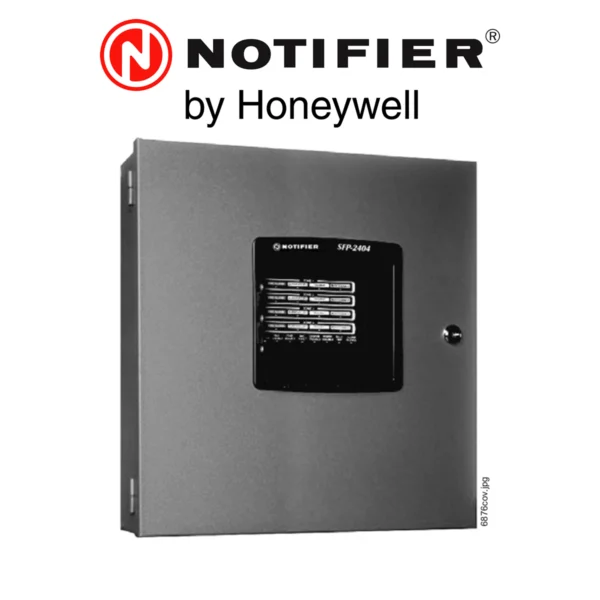

NOTIFIER : Fire Alarm Control Panel
Model: SFP-2402
Two Zone Fire Alarm Control Panel
คำอธิบาย
The SFP-2402 and SFP-2404 are UL Edition listed conventional fire alarm control panels with two alarm initiating zones and four initiating zones respectively. The Notification Appliance Circuit (NAC) protocol can silence audible devices while strobes continue to flash, using a single pair of wires.
Features & Benefits:
- Compatible with conventional input devices such as two- and four-wire smoke detectors, pull stations, waterflow devices, tamper switches and other normally-open contact devices
- 2-zone: 2 Class B/Style B zones; 1 Class B/Style Y NAC
- 4-zone: 4 Class By/Style B zones (Class A/Style D optional); 2 Class B/Style Z (Class A/Style Z optional)
- 3 Amps (expandable to 6.0 AMPS on 4-zone) with programmable strobe synchronization
